QUBIC SYSTEM QS-220-PL - INTRO SET

Qubic System – QS-220-PL Motion System – Set with 2 Actuators and 1 Power Cabinet

About QS-220-PL – Performance Line

Linear actuator technology by Motion Systems allows to develop highly realistic applications with detailed motion textures, velocity, suspension interaction feedback, engine vibrations, tactile feedback, haptic system and vehicle dynamics. Innovative technology, modular and compact design, as well as the quiet operation makes the QS-220-PL as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220-PL can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6 DOF using dedicated cockpits from Qubic System product line.

By using dedicated software Qubic Manager the user can use several sets to create the most realistic simulation that immediately responds to onscreen situations to deliver real life experience in gaming or VR
applications. Motion Systems is a global leading motion platforms brand for professionals and the most demanding home users. For over 10 year the company has been designing and providing bespoke motion solutions for industry and cutting edge technology for racing and flight simulation.

Hardware:

Patent pending technology of QS-L1 linear actuators from Qubic System Performance Line allows to develop highly realistic applications with detailed effects from simulation telemetry. Motor drivers have
been designed by Motion Systems company to do just one job, to control motors in vehicle simulator applications and they are exceptionally good at it.

Included power cabinet (control module) QS-SB2 is responsible for the power distribution and communication to handle telemetry signal processing where motion controller dispatches the commands
to drivers which parse the incoming command as soon as the command arrives. Control module sets the motion and vibration cues for each single actuator. The driver works with both 115V and 230V power
network without any adapters or voltage converters.

5,595.00

Σε απόθεμα

Παράδοση:
1 – 3 ημέρες

Περιγραφή

General specification of QS-220-PL set:

  • Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
  • Actuator stroke: 100 mm | 3.93 in
  • Maximum velocity:
    • Q-Mode (230V): 800 mm/s
    • Performance Mode (115V/230V): 400 mm/s
    • Heavy Duty Mode (115/230V): 300 mm/s
  • Maximum acceleration:
    • Q-Mode (230V): 0.8G*
    • Performance Mode (115V/230V): 0.7G*
    • Heavy Duty Mode (115/230V): 0.4G*
    • *value of acceleration is limited for safety reasons.
  • Recommended payload in 3DOF (2x QS-220-PL) configuration:
    • Q-Mode: 200kg
    • Performance Mode: 250kg
    • Heavy Duty Mode: 350kg
  • Maximum control frequency: 1000 Hz
  • Vibrations frequency range: 0-100 Hz
  • Latency: <8 ms
  • Product weight: 30 kg | 66 lb
  • Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
  • Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
  • Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
  • Cable length (QS-L1 actuator – QS-SB2 Power cabinet): 1150mm | 45.2 in
  • Power supply requirements: 115/230 VAC Single Phase
  • Average power consumption in 3DOF configuration:
    • Q-Mode: 260W (230V)
    • Performance Mode: 280W (230V), 270W (115V)
    • Heavy Duty Mode: 436W (230V), 462W (115V)
  • Peak current for breaker specification in 3DOF configuration:
    • Q-Mode: 5.17A (230V)
    • Performance Mode: 4.55A (230V), 7.35A (115V)
    • Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
  • Connection: USB



Επιπρόσθετες Πληροφορίες

Βάρος 30 kg
Brand

Package Contents

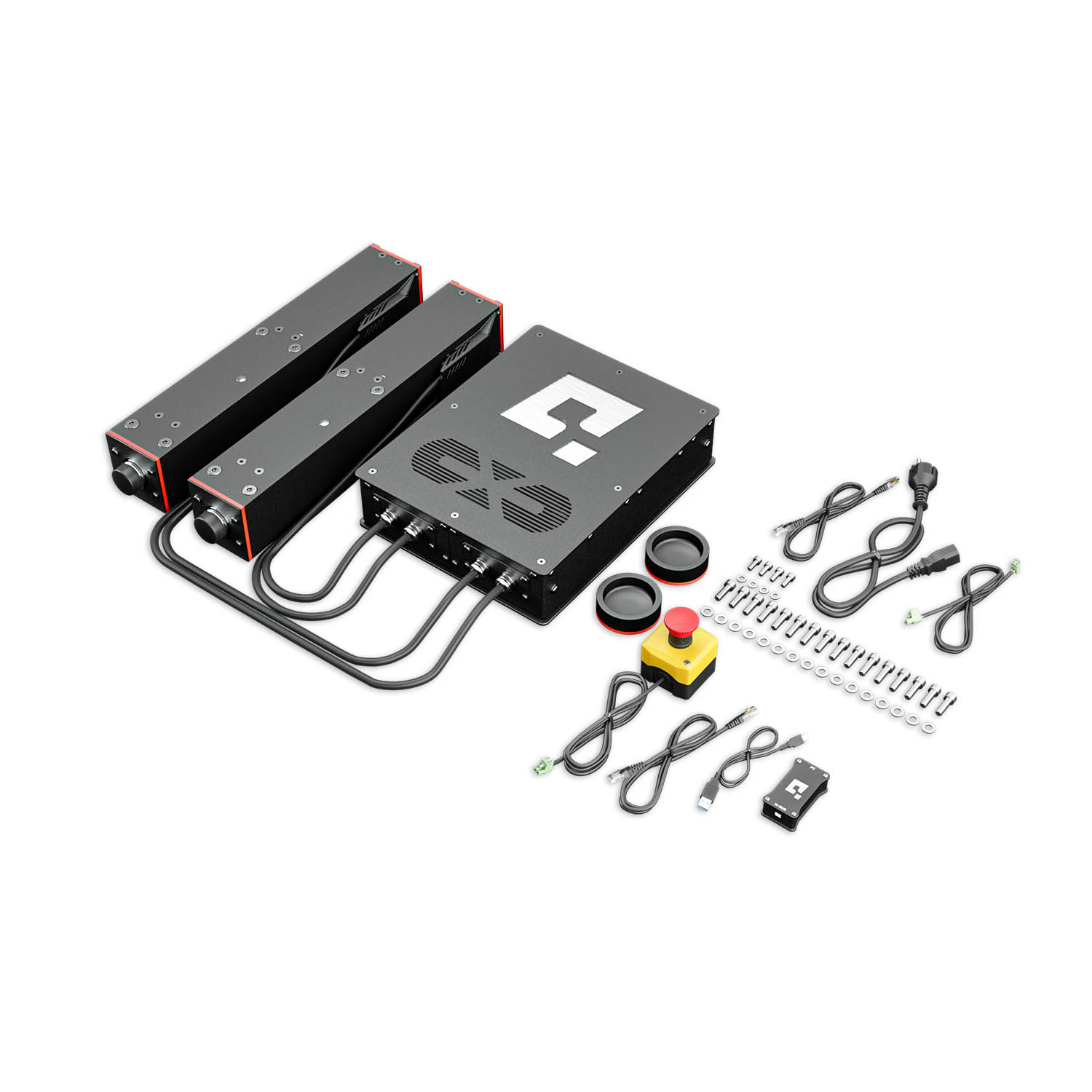

What is included in the package:

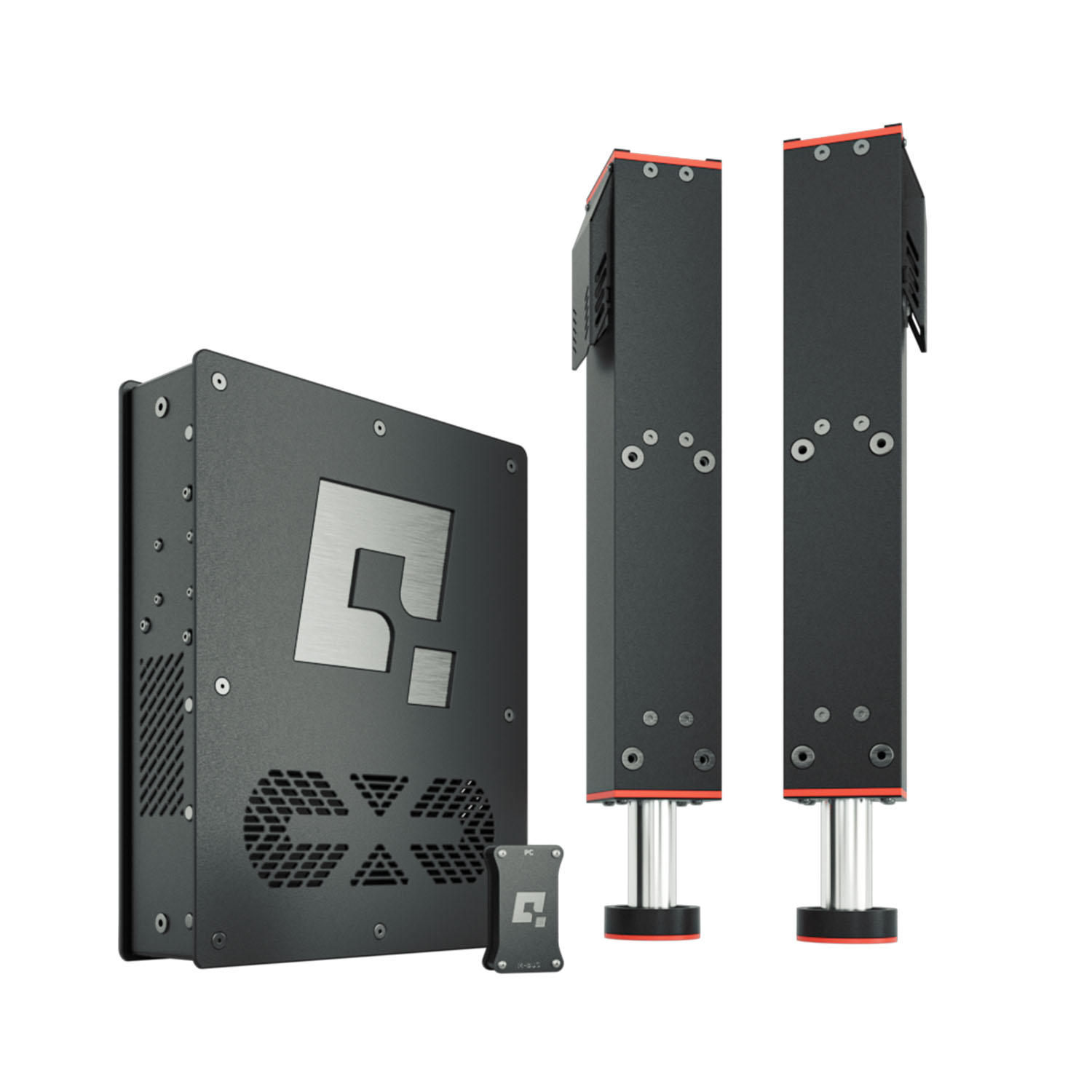

  • QS-220-PL motion set:
    • 2x QS-L1 – linear actuator with cup holder
    • 1x QS-SB2 – power cabinet (control module)
    • 1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 m long
    • 1x Power cable – 1 pcs of 1,8m long cable for EU market

What else is needed to operate the set:

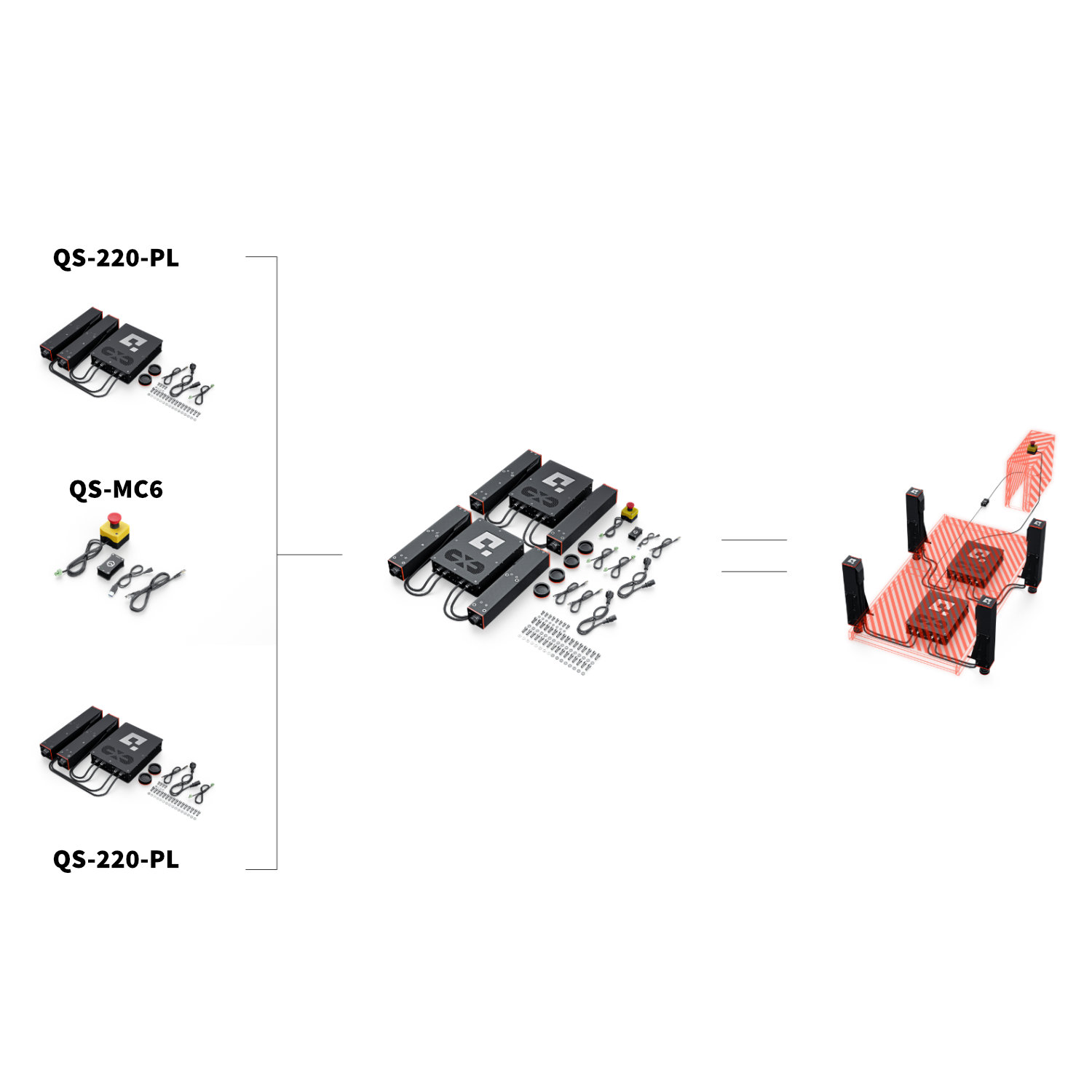

QS-MC6 motion controller set – single unit required to control up to 4 sets of QS-220-PL (not included)

Manuals and Downlaods

Qubic Manager software license:
Available on main page: https://qubicsystem.com/
QS-220-PL product card

• Hardware gDIM’s (dimensions):
QS-L1 (actuator)
QS-SB2 (power cabinet)
User manual
List of supported games

Intro Set

2DOF CONFIGURATION

The QS-220-PL Intro Set consisting of two actuators, power cabinet and motion controller (QS-MC6) is the perfect solution for all drivers who start their adventure with simracing and want to come into the virtual world of competition or need a 2DOF as a first motion platform. Undoubtedly, one of the greatest advantages of the Qubic System brand is the ability to seamlessly expand the motion system with additional actuators kit, quickly and easily creating extraordinary and original motion cockpits in a 3DOF configuration or even 6DOF with additional special designed accessories.
