SKU: QS-220-PL-4

QUBIC SYSTEM QS-220-PL – EXTENDED SET

About QS-220-PL – Performance Line

Linear actuator technology by Motion Systems allows to develop highly realistic applications with detailed motion textures, velocity, suspension interaction feedback, engine vibrations, tactile feedback, haptic system and vehicle dynamics. Innovative technology, modular and compact design, as well as the quiet operation makes the QS-220-PL as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220-PL can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6 DOF using dedicated cockpits from Qubic System product line.

By using dedicated software Qubic Manager the user can use several sets to create the most realistic simulation that immediately responds to onscreen situations to deliver real life experience in gaming or VR
applications. Motion Systems is a global leading motion platforms brand for professionals and the most demanding home users. For over 10 year the company has been designing and providing bespoke motion solutions for industry and cutting edge technology for racing and flight simulation.

Hardware:

Patent pending technology of QS-L1 linear actuators from Qubic System Performance Line allows to develop highly realistic applications with detailed effects from simulation telemetry. Motor drivers have
been designed by Motion Systems company to do just one job, to control motors in vehicle simulator applications and they are exceptionally good at it.

Included power cabinet (control module) QS-SB2 is responsible for the power distribution and communication to handle telemetry signal processing where motion controller dispatches the commands
to drivers which parse the incoming command as soon as the command arrives. Control module sets the motion and vibration cues for each single actuator. The driver works with both 115V and 230V power
network without any adapters or voltage converters.

€11,100.00

Παράδοση:
2 – 3 εβδομάδες

Περιγραφή

General specification of QS-220-PL set:

  • Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
  • Actuator stroke: 100 mm | 3.93 in
  • Maximum velocity:
    • Q-Mode (230V): 800 mm/s
    • Performance Mode (115V/230V): 400 mm/s
    • Heavy Duty Mode (115/230V): 300 mm/s
  • Maximum acceleration:
    • Q-Mode (230V): 0.8G*
    • Performance Mode (115V/230V): 0.7G*
    • Heavy Duty Mode (115/230V): 0.4G*
    • *value of acceleration is limited for safety reasons.
  • Recommended payload in 3DOF (2x QS-220-PL) configuration:
    • Q-Mode: 200kg
    • Performance Mode: 250kg
    • Heavy Duty Mode: 350kg
  • Maximum control frequency: 1000 Hz
  • Vibrations frequency range: 0-100 Hz
  • Latency: <8 ms

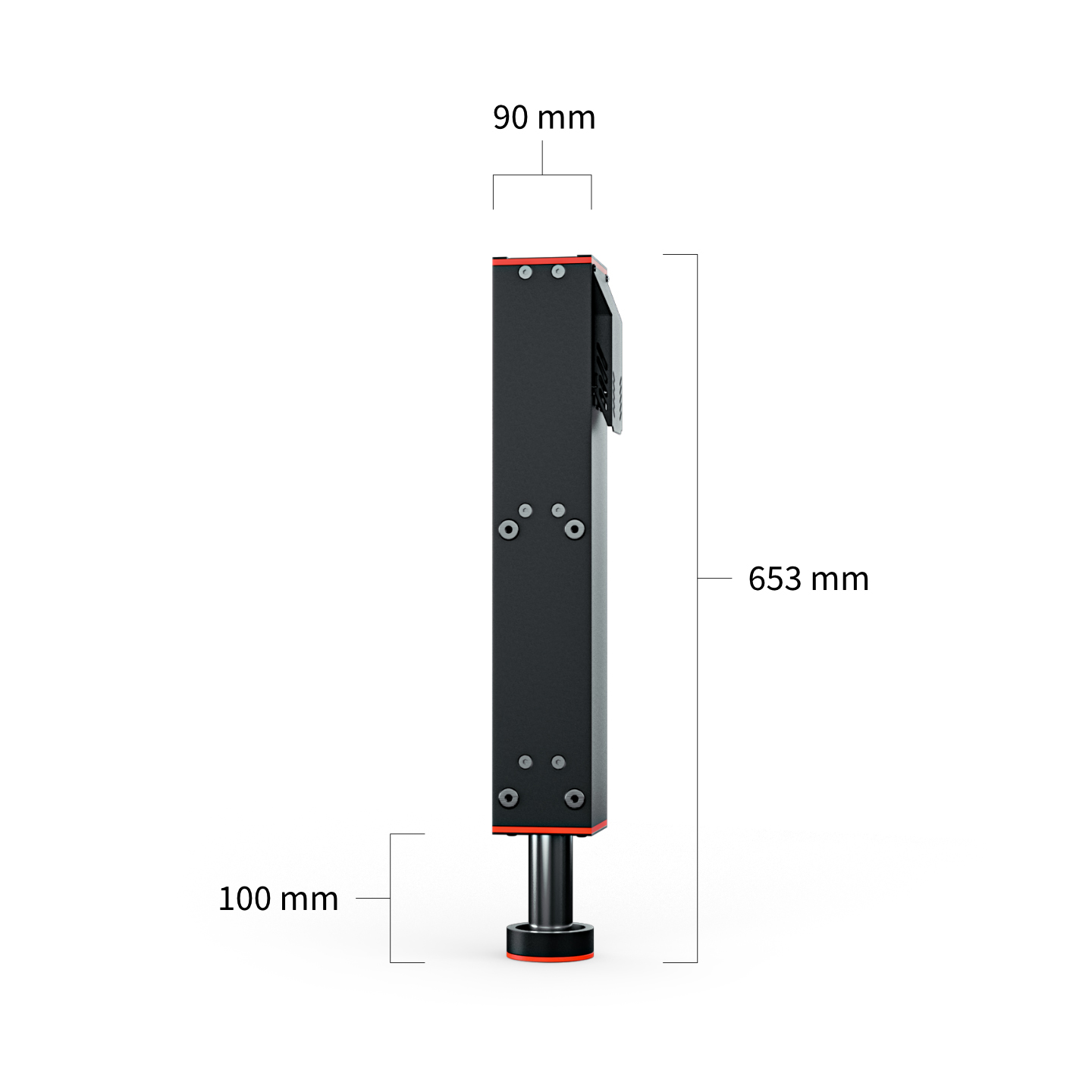

  • Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
  • Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
  • Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
  • Cable length (QS-L1 actuator – QS-SB2 Power cabinet): 1150mm | 45.2 in
  • Power supply requirements: 115/230 VAC Single Phase
  • Average power consumption in 3DOF configuration:
    • Q-Mode: 260W (230V)
    • Performance Mode: 280W (230V), 270W (115V)
    • Heavy Duty Mode: 436W (230V), 462W (115V)
  • Peak current for breaker specification in 3DOF configuration:
    • Q-Mode: 5.17A (230V)
    • Performance Mode: 4.55A (230V), 7.35A (115V)
    • Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
  • Connection: USB

Επιπρόσθετες Πληροφορίες

Βάρος 50 kg
Brand

Package Contents

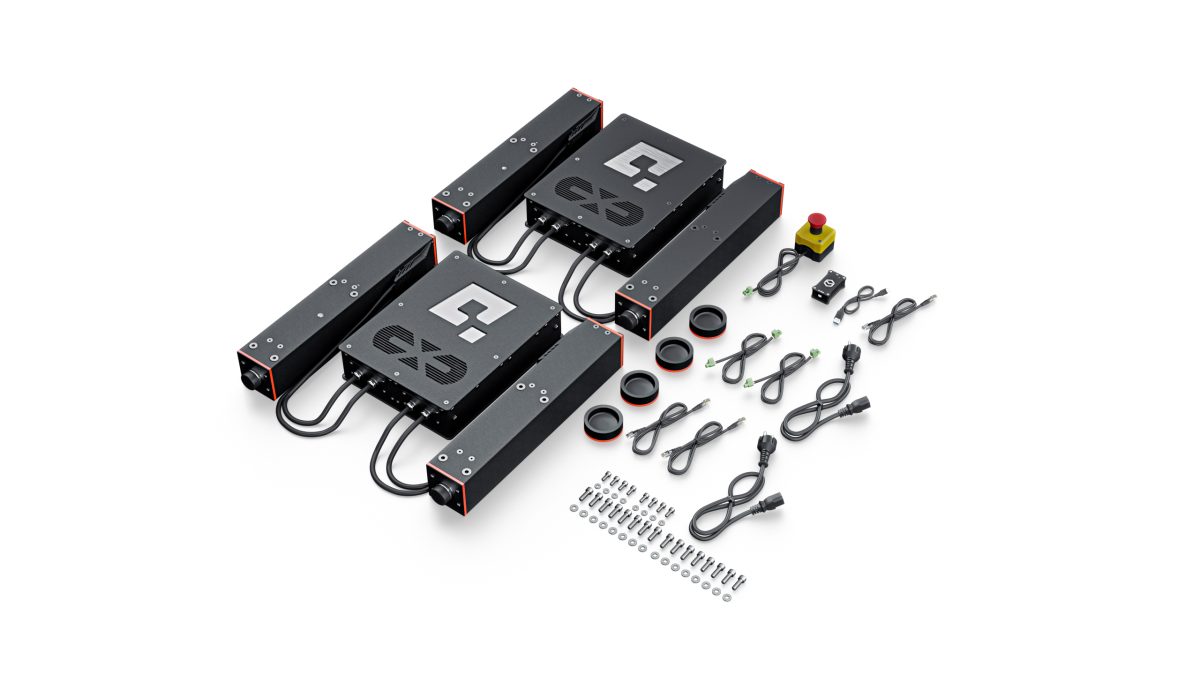

What is included in the package:

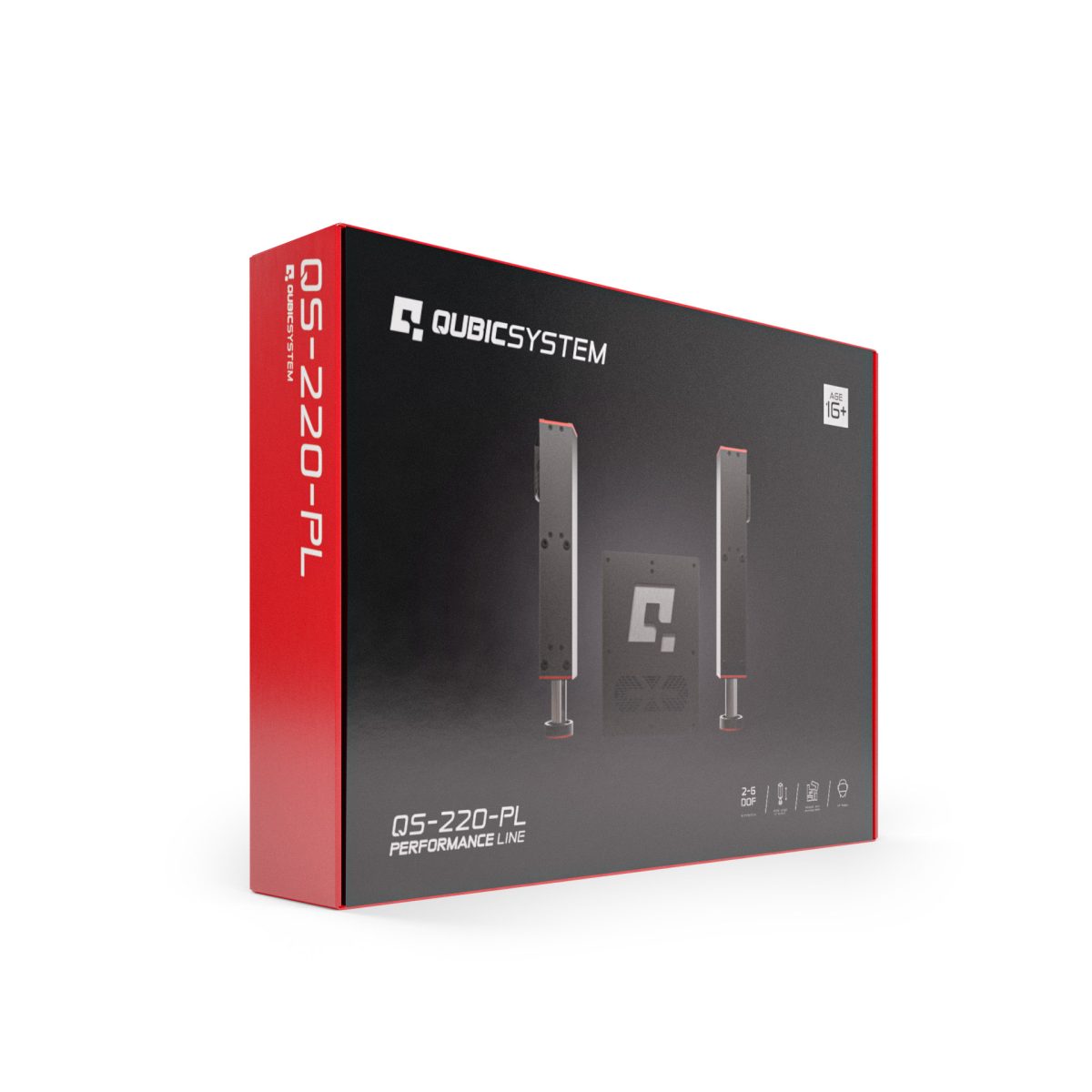

  • QS-220-PL motion set:

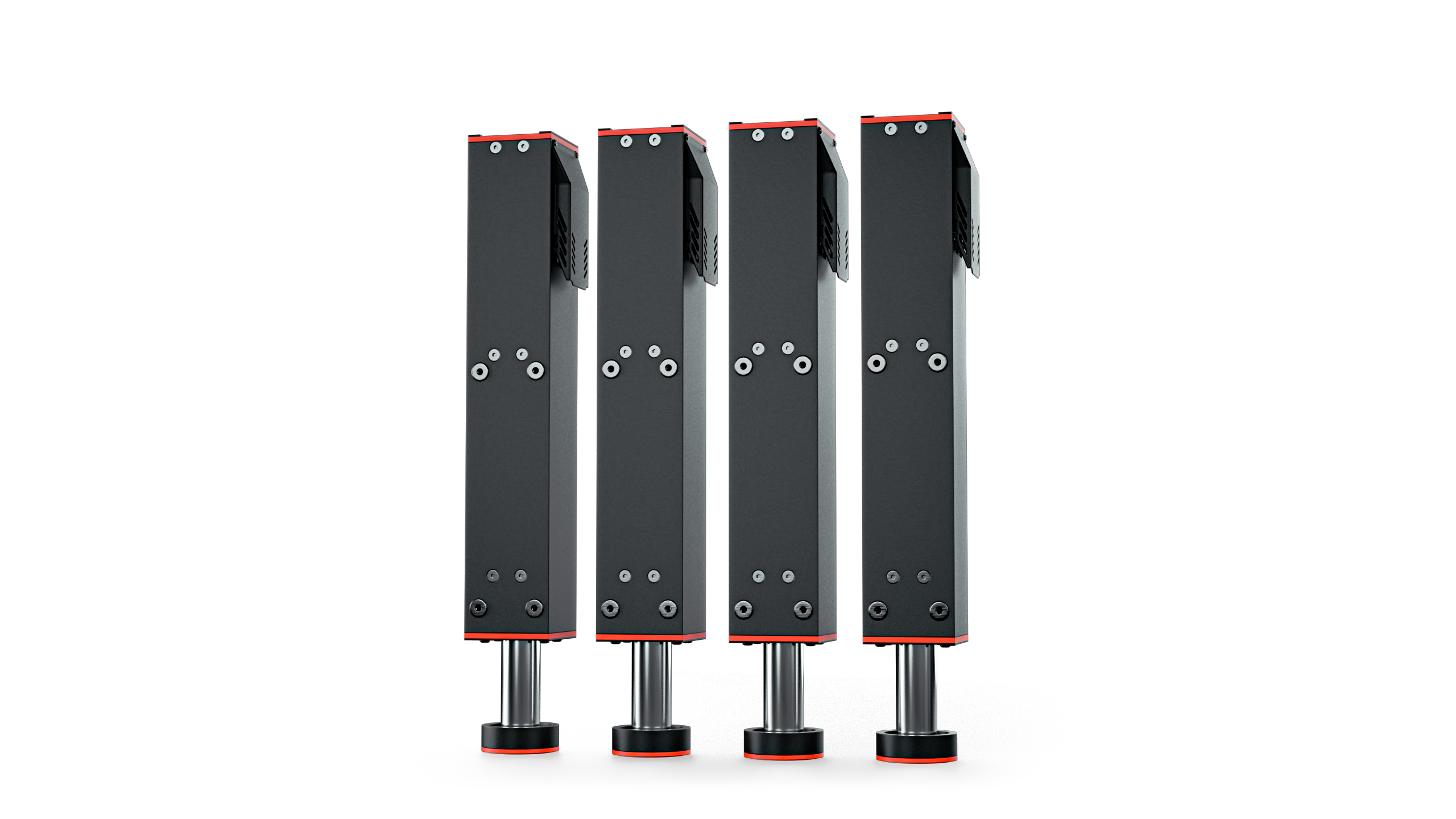

    – 4x Q S-L1 – 2x QS-L1 – linear actuator with cup holder
    – 1x QS-SB2 – power supply cabinet (control
    module ) – 1x QS-SBML-2 – motion lock cable (up -link/down-link) – 2 m long
    – 1x Power cable – 1 1.8 m long cable for the EU market / or 1 2 m long cable for the US market

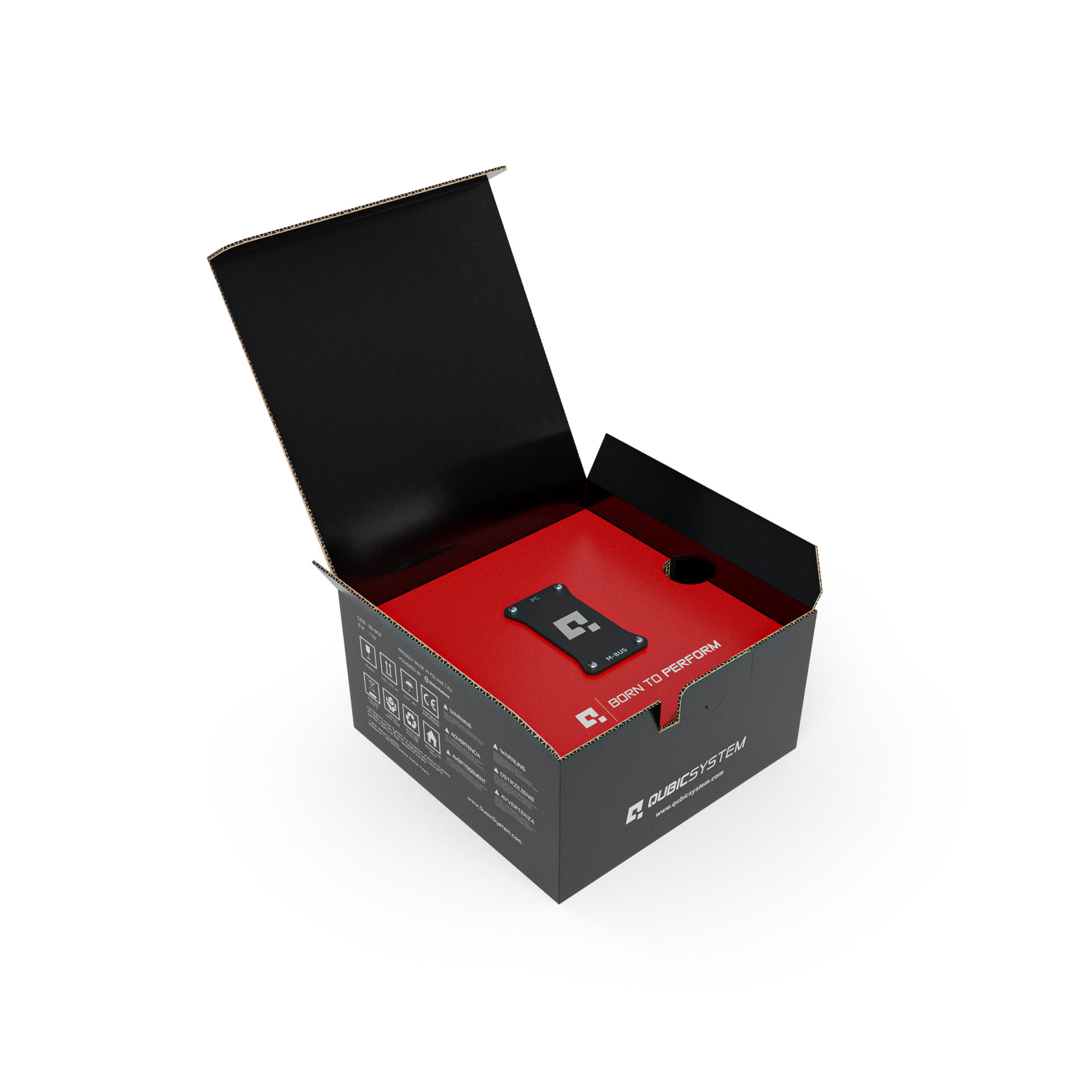

  • QS-MC6 motion controller set – single unit required to control up to 4 sets of QS-220-PL:
    – 1x M10 – USB controller
    – 1x QS-SBML-1 – motion lock with extra 2 m long cable
    – 1x QS-MBT- 1 – M-BUS terminator
    – 1x USB cable – 0.5 m cable (USB micro B)
    – 1x CAT.5E patch cable – 2 m long
  • -1x Power cable – 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market

What else is needed to operate the set:
QS-MC6 motion controller set – single unit required to control up to 4 sets of QS-220-PL (not included)

Manuals and Downlaods

Qubic Manager software license:
Available on main page: https://qubicsystem.com/
QS-220-PL product card

Hardware gDIM’s (dimensions):
QS-L1 (actuator)
QS-SB2 (power cabinet)
User manual
List of supported games

Extended Set

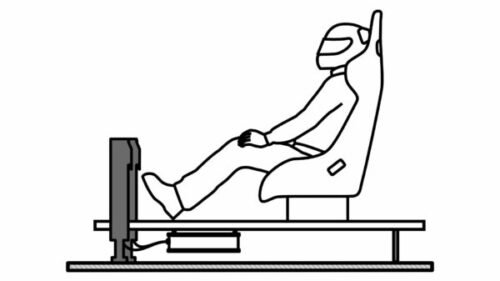

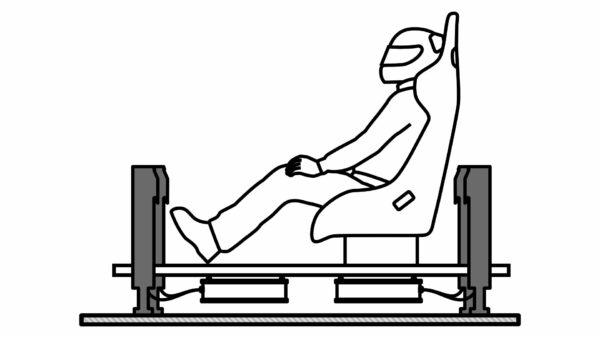

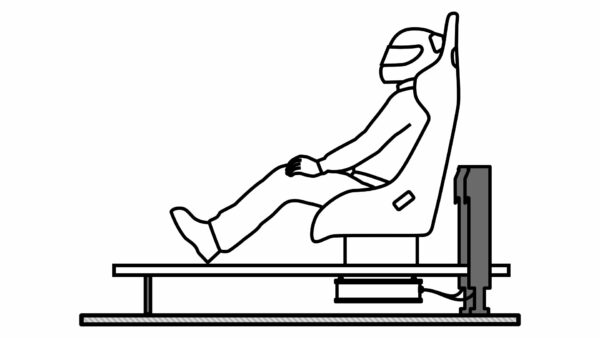

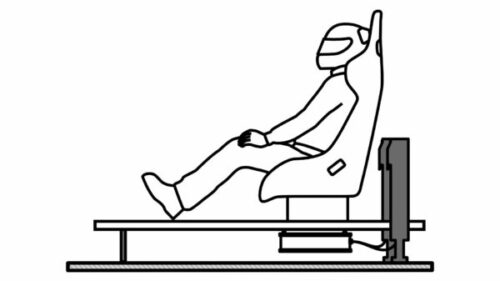

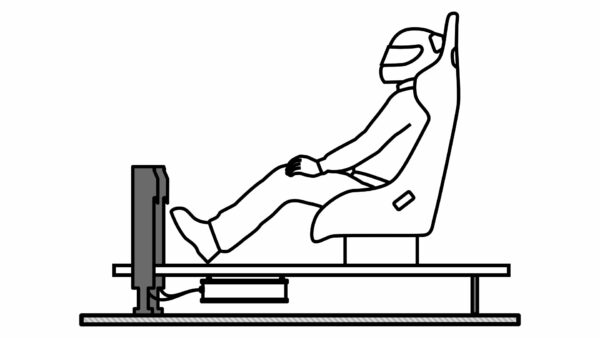

3DOF CONFIGURATION

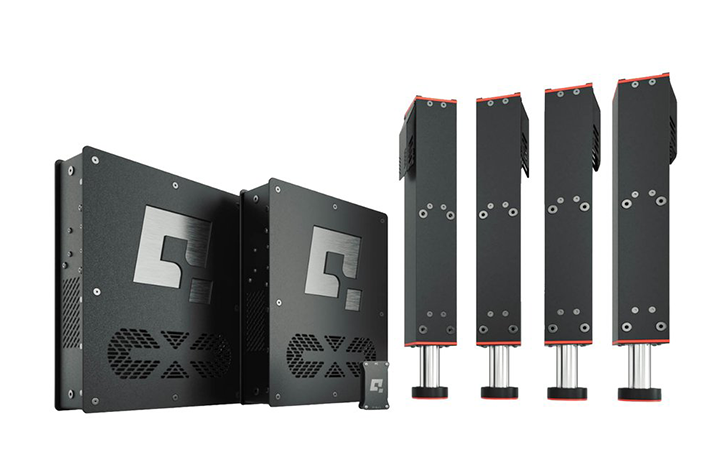

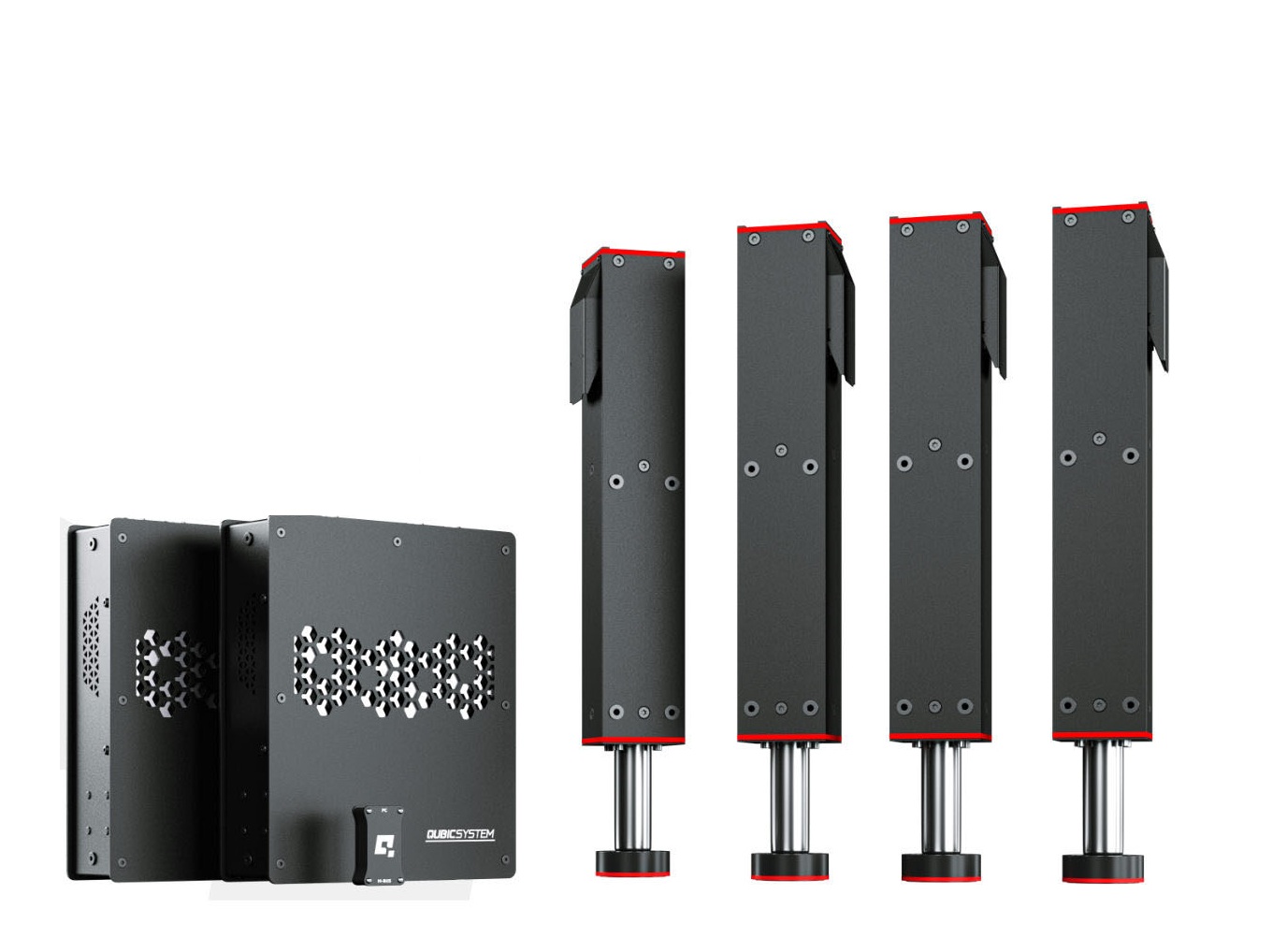

QS-220-PL Extended Set consisting of four actuators, two power cabinets and one motion controller. The 3DOF configuration is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time. During the competition, drivers can feel every possible detail noticeable in a real race (including motor vibrations, road surface, bumps, shunting effects etc.) Due to 3DOF set you can feel like at real racing session directly from your home.
