QUBIC SYSTEM QS-CH1 FULL MOTION SET

The QS-CH1 is an innovative training product designed for advanced simulation of various modes of transport. Its compact design based on the technology of linear actuators makes the driver move to the virtual world with the mapping of stimuli from the real world.

Electric actuators generate precise vibrations in real time and reproduce the finest details while driving – such as curves and obstacles on the racetrack. The lightweight and compact structure makes it easy to transport as well as service for multiple and variable installation.

QS-CH1 is a brand new, modular, and flexibly configurable training product dedicated for advanced land vehicles and city car driving simulation. QS-CH1 is a part of the Qubic System product’s series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build a simulator for future drivers or vehicle operators. The motion system consists of 3 DOF platform with electric actuators that provide cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes. QS-CH1 only needs a 1.5 square meter place, and it is ideal for applications where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Power cabinets are located in the lower part of the QS-CH1 motion platform, under the cockpit, which significantly reduces the usable space and improves safety.

The motion system QS-CH1 gives the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

QS-CH1 device is a modular, and configurable training product dedicated for advanced land vehicles and city car driving simulation. Users who already have a motion base (motion platform) can only use a floor with seat and steering wheel mounting brackets, which can be easily and quickly adapted to individual projects.

13,800.00

Παράδοση:
2 – 3 εβδομάδες

Περιγραφή

QS-CH1 FULL SET

  • Architecture: 3DOF
  • Actuator stroke: 100 mm | 3.93 in
  • Vibration frequency range: 0-100 Hz
  • Maximum control frequency: 1000 Hz
  • Maximum velocity:
    • Heavy Duty Mode (115/230V): 300 mm/s
  • Maximum acceleration:
    • Heavy Duty Mode (115/230V): 0.4G*
    • *value of acceleration is limited for safety reasons

QS-CH1 SYSTEM PERFORMANCE

  • Heave: – 50 mm, 50 mm
  • Roll: -7°, 7°
  • Pitch: -5°, 5°

QS-CH1 DIMENSIONS

  • Total length: 1426 mm | 56 in
  • Total width: 856 mm | 33.7 in
  • Total height: 763 mm | 30 in

POWER REQUIREMENTS

  • Power supply requirements: 115/230 VAC Single Phase
  • Average power consumption in 3DOF configuration:
    • Q-Mode: 260W (230V)
    • Performance Mode: 280W (230V), 270W (115V)
    • Heavy Duty Mode: 436W (230V), 462W (115V)
  • Peak current for breaker specification in 3DOF configuration:
    • Q-Mode: 5.17A (230V)
    • Performance Mode: 4.55A (230V), 7.35A (115V)
    • Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
  • Connection: USB, Ethernet



Επιπρόσθετες Πληροφορίες

Brand

Package Contents

QS-CH1 FULL SET

  • 2 x QS-220-PL motion set:
    • 4x QS-L1 – linear actuator with stabilization plate
    • 2x QS-SB2 – power cabinet (control module)
    • 1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 meters long
    • 1x Ethernet RJ-45 cable – 2 meters long
    • 1x Power cable
  • 1x QS-MC6 controller set:
    • 1x M10 – USB controller
    • 1x QS-SBML-1 – motion lock with additional cable
    • 1x QS-MBT-1 – M-BUS terminator (RJ45 plug with resistor)
    • 1x USB cable (mini)
    • 1x Ethernet RJ-45 cable – 3 meters long
  • QS-CH1 BASE

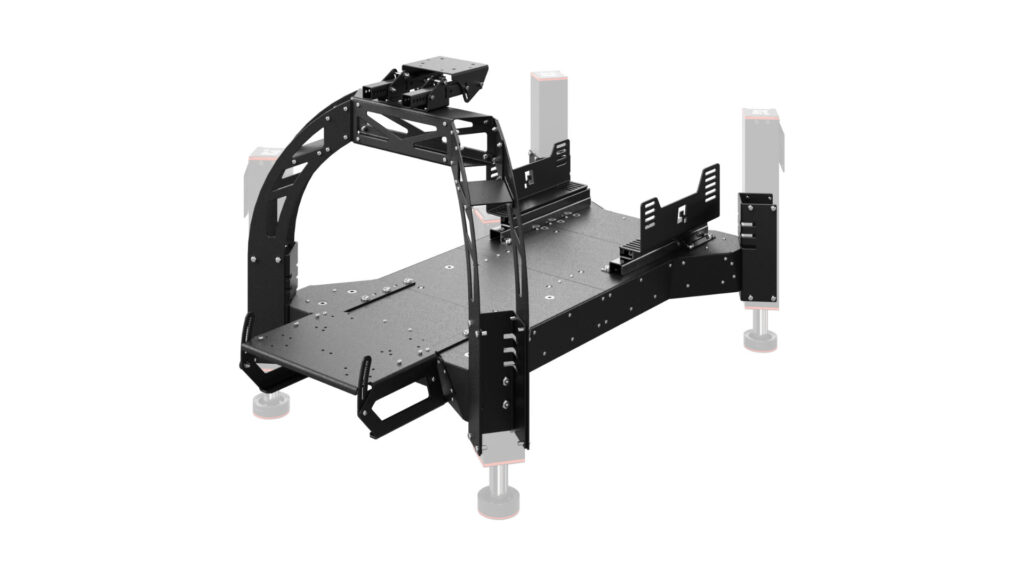

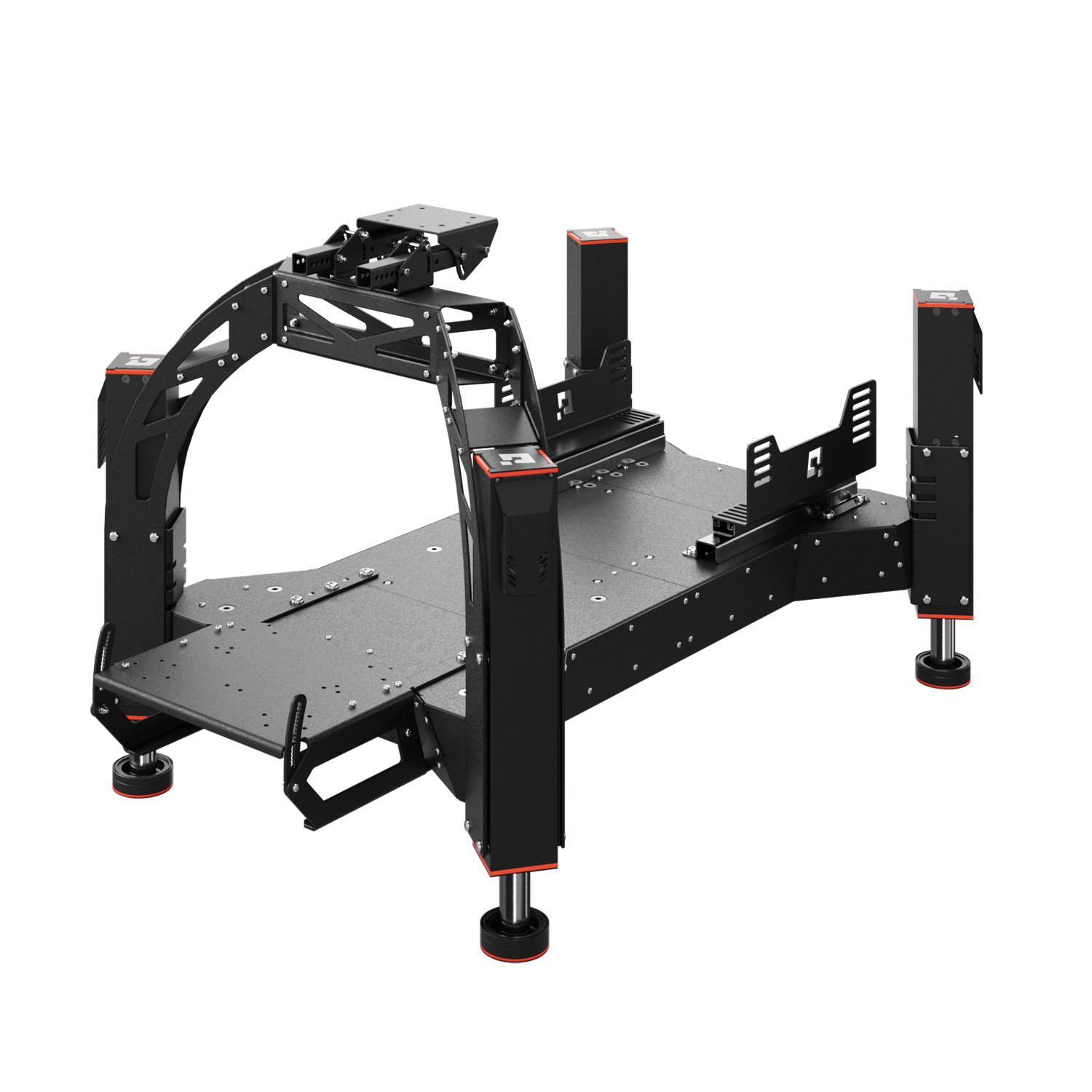

    • 1x motion floor with mounting brackets:
    • 2x mounting bracket for power cabinet
    • 4x mounting bracket for actuator
    • 1x mounting bracket for steering wheel with adjustment
    • 1x mounting bracket for pedals
    • 1x mounting bracket for racing seat with adjustment

Price does not contain peripherals like: PC computer, manipulators, game or simulation software, add-ons, accessories.

Professional vehicle training system



QS-CH1 is a brand new, modular, and flexibly configurable training product dedicated for advanced land vehicles and city car driving simulation. QS-CH1 is a part of the Qubic System product’s series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build a simulator for future drivers or vehicle operators. The motion system consists of 3 DOF platform with electric actuators that provide cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes.

Quality & Function



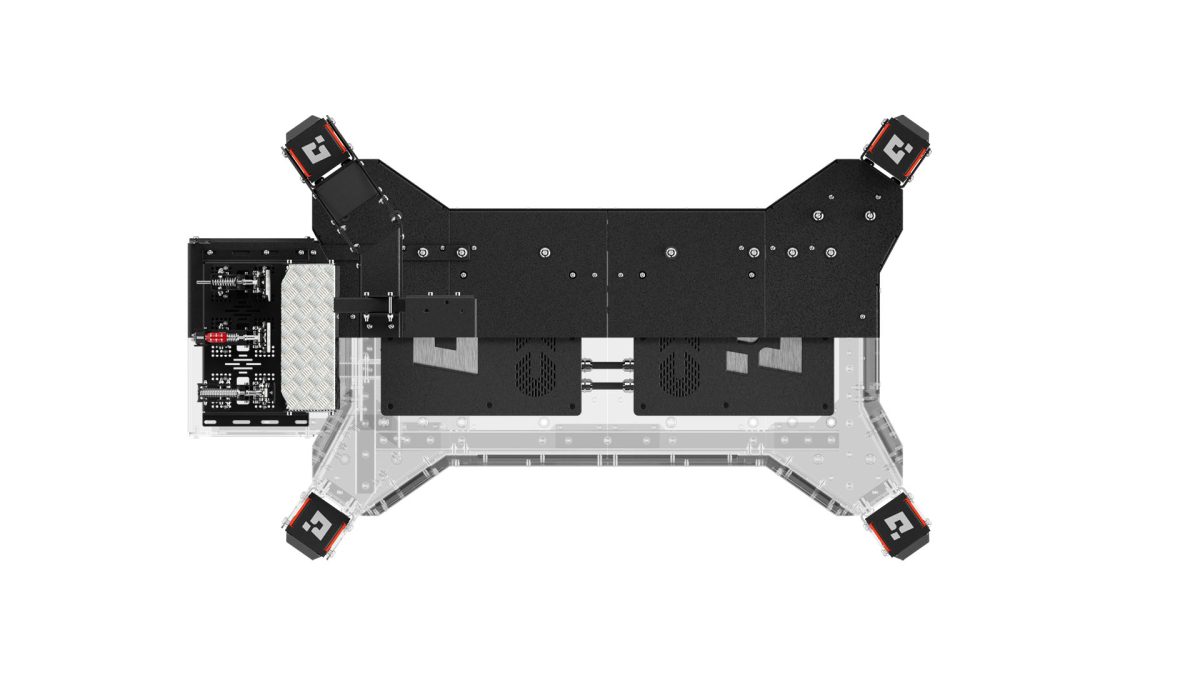

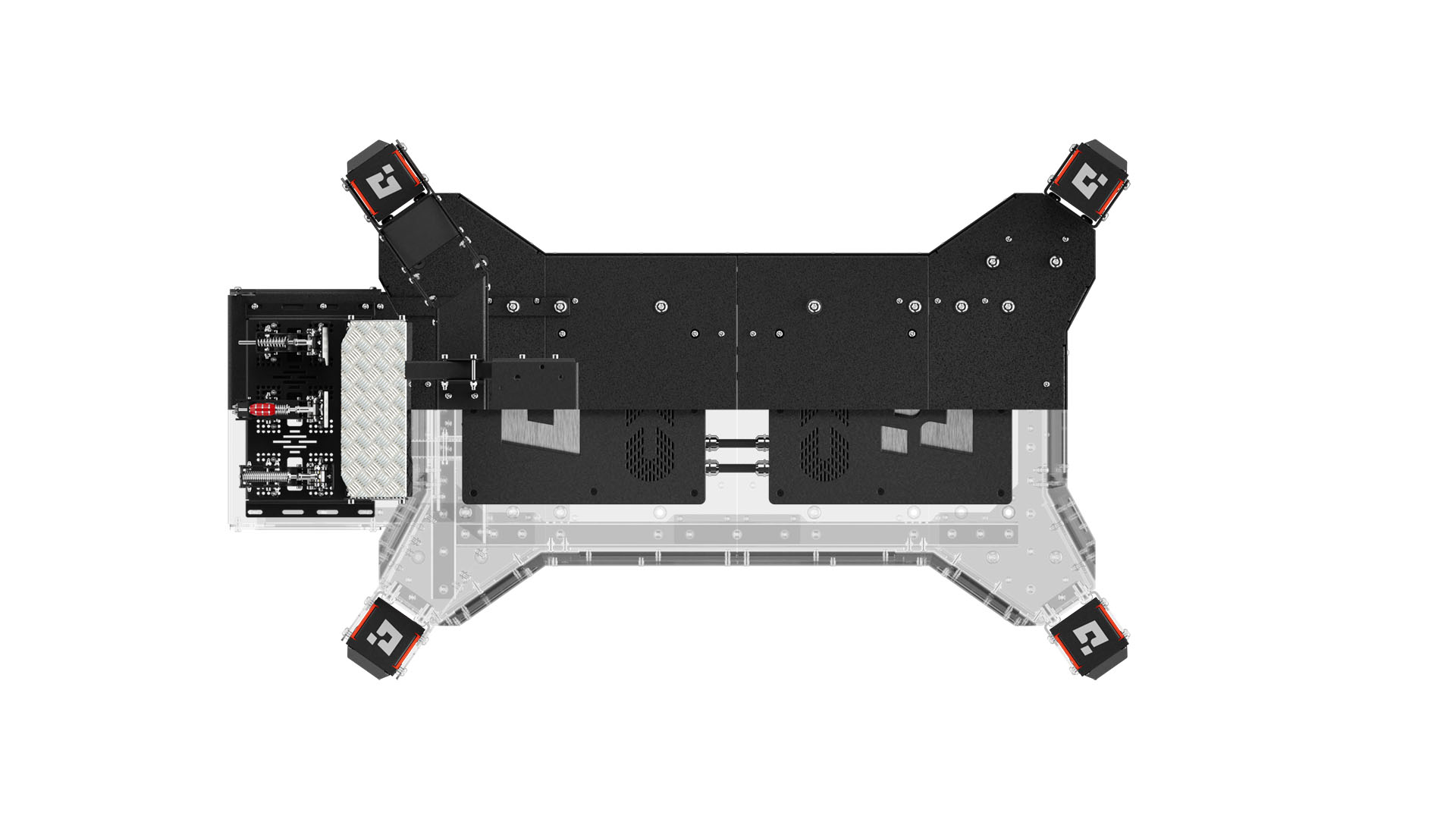

This motion system is the perfect solution for everyone who is looking for the most realistic simulation and reasonable, easy-to-use motion platform, which is designed for a continuous and maintenance-free operation. QS-CH1 only needs a 1.5 square meter place, and it is ideal for applications where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Power cabinets are located in the lower part of the QS-CH1 motion platform, under the cockpit, which significantly reduces the usable space and improves safety.

Fully customizable dashboard

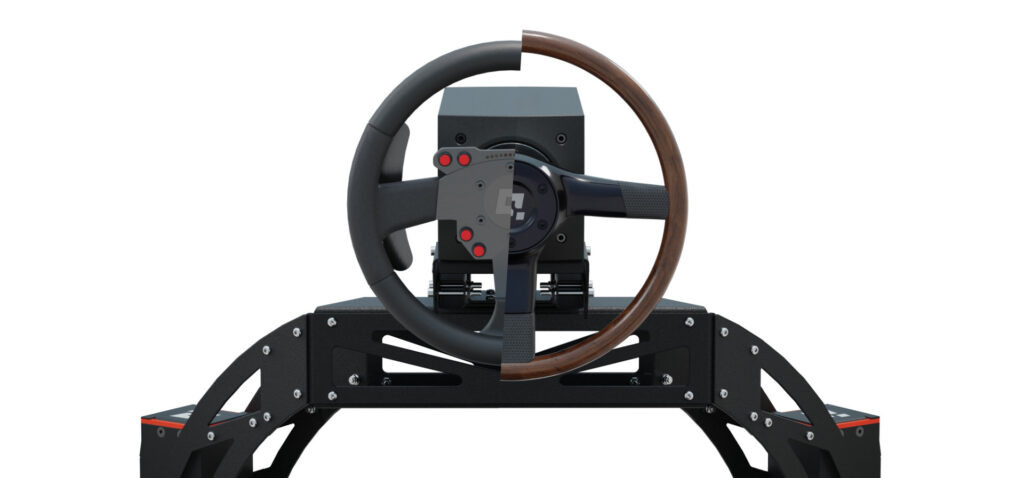

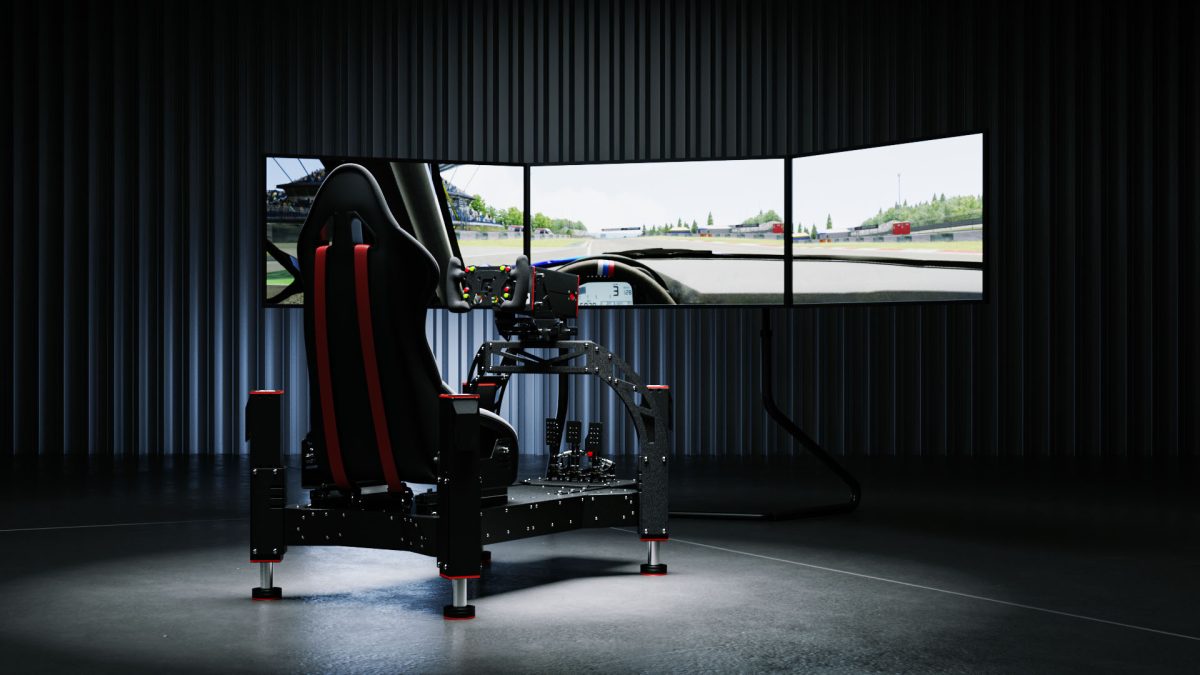

The motion system QS-CH1 gives the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

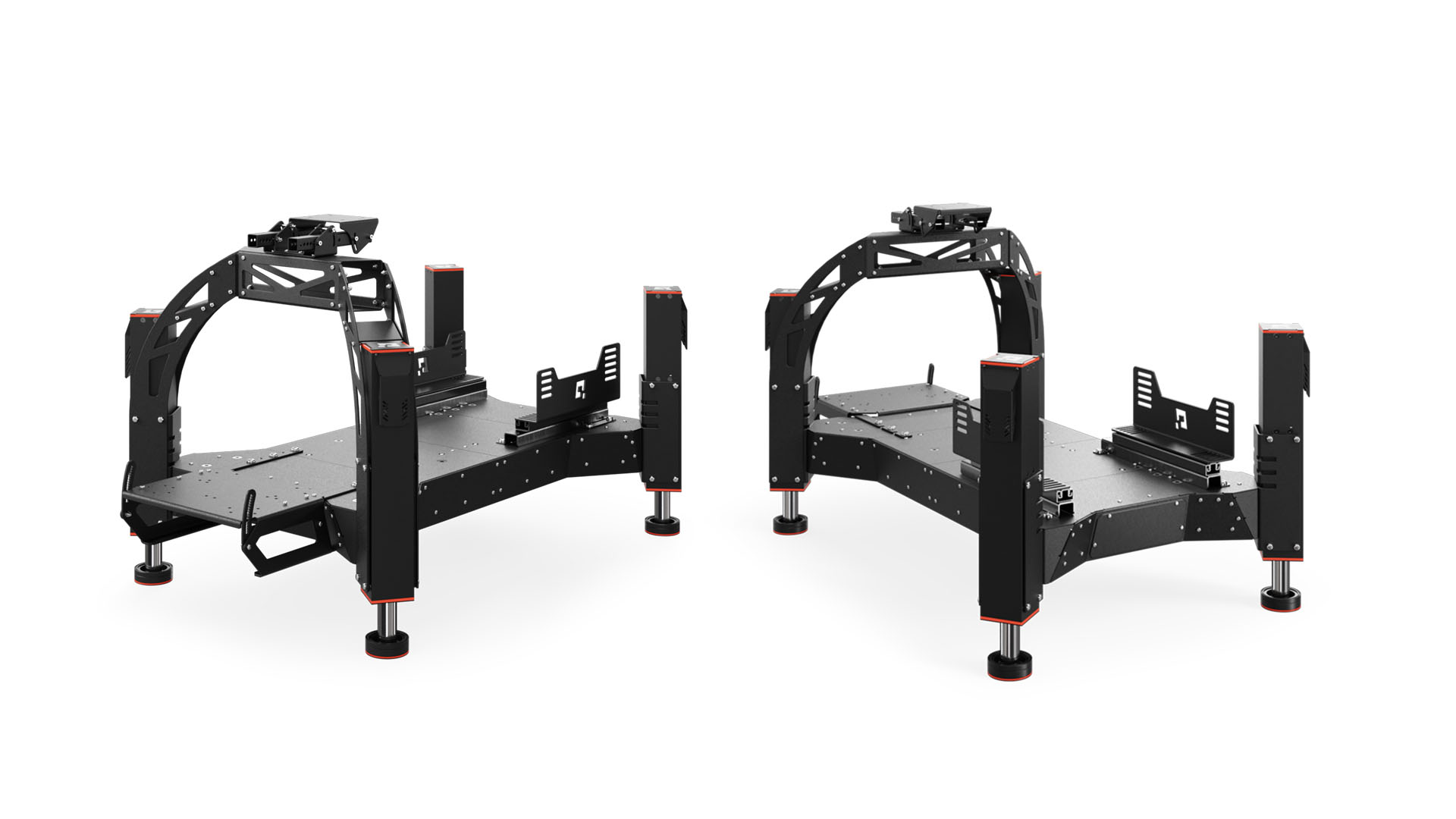

Pro vehicle floor

QS-CH1 device is a modular, and configurable training product dedicated for advanced land vehicles and city car driving simulation. Users who already have a motion base (motion platform) can only use a floor with seat and steering wheel mounting brackets, which can be easily and quickly adapted to individual projects.
